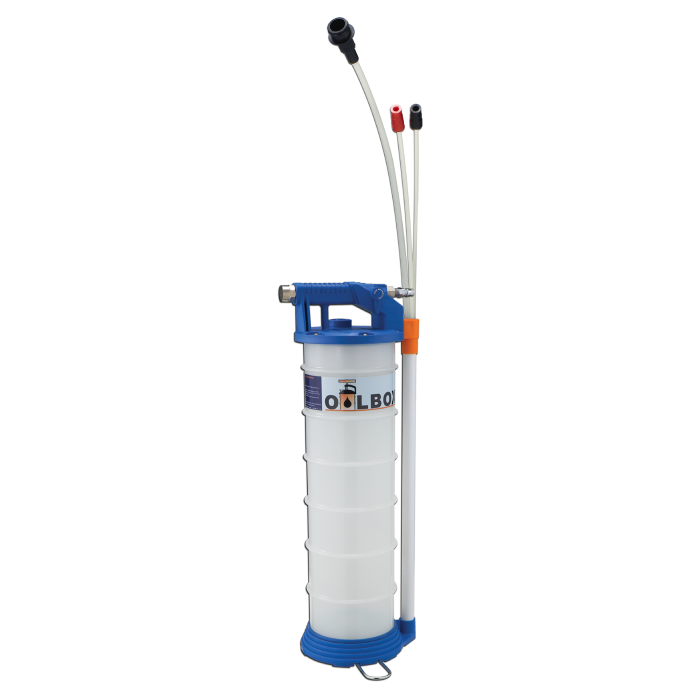

Pneumatic Fluid Extractor (7 liters)
application
Universal suction pump for oils and similar liquids.
function
To create the vacuum by air compressor and extract the fluid into the container.
Features
– Automatic stop by overflow valve.
– Suction power adjustable by lever switch.
– Stable plastic container with marks.
– Operating temperature up to 100°C.
– White-transparent container for fluid indication.
– No tilt angle restriction by emptying.
– Portable.
– Air compressor connection: quick coupling 1/4″ NPT.
– 90 PSI (6.2 bar).
– Suction power adjustable by lever switch.
– Stable plastic container with marks.
– Operating temperature up to 100°C.
– White-transparent container for fluid indication.
– No tilt angle restriction by emptying.
– Portable.
– Air compressor connection: quick coupling 1/4″ NPT.
– 90 PSI (6.2 bar).
description
| Item No. | 110009 |
| Matchcode | OA-707 |
| Capacity | 7 liters |
| Weight | 2.5 kg |
| Dimension | 660H x 185W (mm) |
scope of delivery
1 x pump (7 liters)
3 x tubes (210002): 9.8mm x 100cm, 6.7mm x 85cm, 5.8mm x 85cm
3 x tubes (210002): 9.8mm x 100cm, 6.7mm x 85cm, 5.8mm x 85cm
